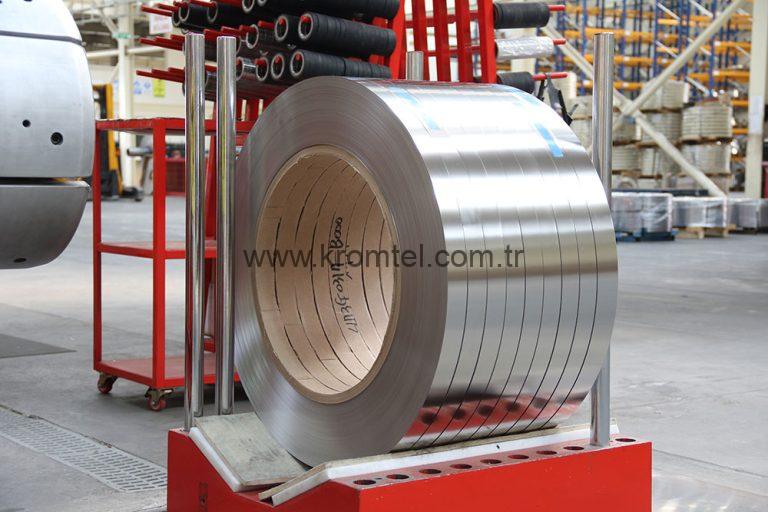

Stainless Steel Strip

March 16, 2023 April 10, 2023

Kromtel stainless steel strips have a broad range of use in the automobile industry, white goods industry, textile machinery, elevators, razors, knives, strip saws with spring raw material.

Kromtel can provide you with many different qualities such as AISI 301, AISI 304, AISI 304L, AISI 305, AISI 309/310/314, AISI 316, AISI 430, AISI 430F, AISI 420 and AISI 613 which can be delivered in various sizes and hardness. Also strips can be delivered with features such as edge cut, burred off and rounded. Those strips have an extra shiny surface due to the oiling process.

Kromtel also provides extra sensitive stainless steel material that is used for applications such as windshield wipers.

APPROXIMATE CHEMICAL COMPOSITIONS

KROMTEL NORM	C	Si	Mn	P	S	Cr	Ni	Mo	AISI	Werkstoff Nr.
K301	0,05-0,15	<2,0	<2,0	<0,045	<0,015	16-19	6,0 -9,5	<0,80	301	1,4310
K304	<0,07	<1,0	<2,0	<0,045	<0,015	17,5-19,5	8,0-10,5	—	304	1,4301
K316	<0,07	<1,0	<2,0	<0,045	<0,015	16,5-18,5	10-13	2 – 2,5	316	1,4401
K304L	<0,03	<1,0	<2,0	<0,045	<0,015	17,5-19,5	8,0-10,5		304L	1,4307
K316L	<0,03	<1,0	<2,0	<0,045	<0,015	16,5-18,5	10-13	2 – 2,5	316L	1,4404
K420	0,16-0,25	<1,0	<1,50	<0,040	<0,015	12-14	—	—	420	1,4021
K430	<0,08	<1,0	<1,0	<0,040	<0,015	16-18	—	—	430	1,4016

Phosphor Bronze Strip

March 16, 2023 March 27, 2023

Strip

Has especially an wide industrial use as electric contact for the automotive, white goods and brown goods industries. Phosphor Bronze has also a special area of use such as connector contacts, pump components, welding wires and electrotes.

Physical Properties
Alloy	Density (gr/cm³)	Thermal Elongation Factor (10-6 K-1)	Electric Cond. (MS/ m?mm²)	Electric Cond. (% IACS)	Heat Cond. (W/mK)	Flexibility (kN/mm²)	Welding Prop.	Solderin Prop.	Cracking
CuSn6	8.90	18.5	9	15	75	115	Good	Very Good	No
CuSn8	8.90	18.5	7.5	13	62	115	Good	Very Good	No

Mechanical Properties
Alloy	Temper	T/S RM (N/mm²)	Bending Hardness Rp 0.2 (N/mm²)	Elongation A50 mm (%50 min)	Vickers Hardness
CuSn6	R350/H80	350-420	≥300	≥45	80-110
	R420/H125	420-520	≥260	≥17	125-165
	R500/H160	500-590	≥450	≥8	160-190
	R560/H180	560-650	≥500	≥5	180-210
	R640/H200	640-730	≥600	≥3	200-230
	R720/H220	≥720	≥690	–	≥220
CuSn8	R370/H90	370-450	≥300	≥50	90-120
	R450/H135	450-550	≥280	≥20	135-175
	R540/H170	540-630	≥460	≥13	170-200
	R600/H190	600-690	≥530	≥5	190-220
	R660/H210	660-750	≥620	≥3	210-240
	R740/H230	≥740	≥700	≥2	≥230

Chemical Composition
Alloy	Chemical Composition (%)	EN	USA	Standards
CuSn6	Sn 5.5-7.0 P max. 0.35 Cu Rest	CW452K	C51900	DIN 17670-1 BS Alloy Pb 103
CuSn8	Sn 7.5-8.5 P max. 0.35 Cu Rest	CW453K	C52100	DIN17670-1 BS Alloy Pb 104

Carbon Steel Strip

March 16, 2023 March 27, 2023

Strip

Kromtel high carbon steel strips are processed through various heat treatments, edge and surface processes. Our products have very sensitive tolerances which allows you to find various combinations.

The manufacturing process which is ISO9002 certified is utilised by qualified and educated workers using high technology machinery and equipment for high quality manufacturing. The in-house slitting lines allows us to provide you with your required sizes.

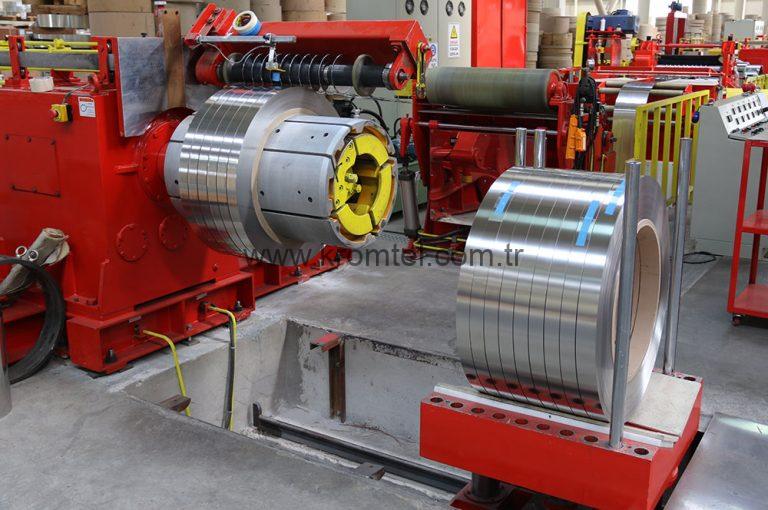

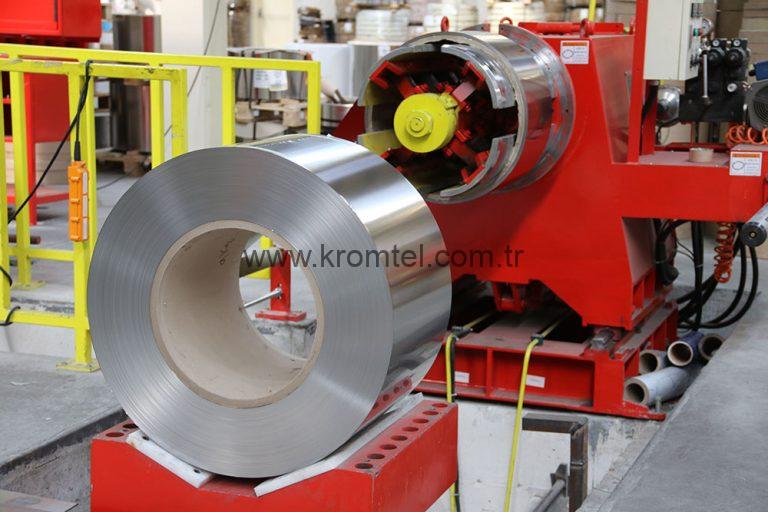

♦ Slitting and Cutting Line ♦

The materials can be provided as original cut or slitted at our company regarding the sizes you need.

Approximate Chemical Compositions
Grade	%C	%Mn	%P (Max.)	%S (Max.)	Werkstoff Nr.
C55	0.52-0.60	0.60-0.90	0.040	0.050	1.1203
C60	0.55-0.66	0.60-0.90	0.040	0.050	1.0601
C67	0.65-0.76	0.60-0.90	0.040	0.050	1.1231
C75	0.70-0.80	0.60-0.80	0.040	0.050	1.1248
CK60	0.55-0.66	0.60-0.90	0.040	0.050	1.1221
CK67	0.65-0.76	0.60-0.90	0.040	0.050	1.1231
CK75	0.70-0.80	0.50-0.80	0.040	0.050	1.1248
CK85	0.80-0.90	0.70-1.00	0.040	0.050	1.1269
CK101	0.90-1.04	0.30-0.50	0.040	0.050	1.1274
50CrV4	0.45-0.55	0.70-1.10	0.040	0.050	1.2241

Equilavent Standards Table
Werkstoff Nr.	DIN	AISI	BS	AFNOR	UNI
1.1121	Ck10	1010	CS10	XC10	C10
1.1141	Ck15	1020	CS17	XC15	C16
1.1186	Ck35	1040	CS40	XC3841	C40
1.1191	Ck45	–	–	–	–
1.1206	Ck50	–	CS50	–	–
1.1203	Ck55	1055	–	XC55H1	C55
1.0601	Ck60	1060	CS60	–	C60
1.1231	Ck67	1065	CS70	XC68	C70
1.1248	Ck75	1074	CS80	XC75	C75
1.1269	Ck85	1085	–	XC90	C90
1.1273	90Mn4	–	–	–	–
1.2002	C125W2	–	–	Y2120C	–
1.2003	75Cr1	–	–	–	–
1.7015	15Cr3	5015	–	12C3	–
1.7103	67SiCr5	–	–	60SC7	–
1.7131	16MnCr5	5115	–	16MC5	16MnCr5
1.2241	50CrV4	8615	En47 735A50	50CV4	50CrV4

♦ Carbon Steel Area of Use ♦

Industrial springs, tree, strip, sabre and circular saws, measuring tools (folding meter), elevator connection parts, garden scissors, various knifes, trowels, spatula, marley knife, clutch manufacturing, safety belts, bonnet connection parts, bicycle, agricultural and industrial chains, hinge production, jewelry manufacturing, shoe supports, firearm parts, press and textile spare parts industry, white goods industry, plastic fibre knifes, drum spring steels, bearing manufacturing, leather cutting and splitting knifes, umbrealla parts, file parts, pressure cooker parts, horn diagrams, steel washer manufacturing, compressor valve steels, clips, tobacco knifes, stone and beton adjustment knifes, panel suspension ceiling.

Stainless Steel Wire Mesh

March 16, 2023 March 27, 2023

Wire

Stainless steel wire mesh, filter wire, all kinds of raw materials and materials are widely used as sieving and filtering. Withstand high temperature, water, and conveniently used in an acidic environment and superior mechanical properties are widely preferred.

Kromtel stainless steel sieve / filter wires as standard stock rolls are 304 and 316 grades.

Standard sizes; Width x length: 1 x 30 m
Width x height: 1.3 x 30 m
In accordance with your demands special order 304L, 316L, 310 and 314 grades, material as well as the different width and length can provide.
All materials are original analysis report.

Areas of application:

Plastic, chemical and fiber industry (refining, drying and filtering operations)
Automotive industry (manufacture of airbag and filtering operations)
Food industry (drying, handling and freezing)
Paper and pulp industry (drying and washing operations)
Electronic and computer industry (printing and drilling operations)
Petro-chemical industry (drying and filtering operations)
The tire industry (drying and filtering operations)
Machinery and metal industry
Pharmaceutical industry
Kitchen appliances industry
Granite and quartz quarries
Flour and feed mills
Transport systems
Flour mills (Horizontal scourer etc).

Size	Wire dia	Width	Length	Opening
mesh	(mm)	(mt)	(mt)	(Microns)
4	1,00	1-1,3	30	5350
5	1,00	1-1,3	30	4080
6	0,90	1-1,3	30	3333
6	1,00	1-1,3	30	3333
7	0,60	1-1,3	30	3233
7	0,65	1-1,3	30	2979
7	0,80	1-1,3	30	2829
8	0,65	1-1,3	30	2425
8	0,75	1-1,3	30	2425
10	0,60	1-1,3	30	1940
10	0,75	1-1,3	30	1790
12	0,50	1-1,3	30	1616
12	0,57	1-1,3	30	1546
12	0,60	1-1,3	30	1516
12	0,65	1-1,3	30	1516
14	0,47	1-1,3	30	1344
16	0,37	1-1,3	30	1217
16	0,40	1-1,3	30	1187
16	0,47	1-1,3	30	1117
18	0,37	1-1,3	30	1041
18	0,40	1-1,3	30	1011
18	0,47	1-1,3	30	941
20	0,35	1-1,3	30	900
20	0,37	1-1,3	30	900
20	0,40	1-1,3	30	870
20	0,45	1-1,3	30	820
20	0,50	1-1,3	30	770
25	0,25	1-1,3	30	766
25	0,30	1-1,3	30	716
25	0,35	1-1,3	30	666
30	0,27	1-1,3	30	576
30	0,30	1-1,3	30	546
30	0,37	1-1,3	30	476
30	0,40	1-1,3	30	446
35	0,22	1-1,3	30	505
35	0,25	1-1,3	30	475
35	0,28	1-1,3	30	445
40	0,20	1-1,3	30	455
40	0,22	1-1,3	30	415
40	0,25	1-1,3	30	385
50	0,18	1-1,3	30	328
50	0,22	1-1,3	30	288
60	0,14	1-1,3	30	283
70	0,13	1-1,3	30	233
80	0,12	1-1,3	30	197
90	0,10	1-1,3	30	182
100	0,10	1-1,3	30	154
120	0,08	1-1,3	30	131
150	0,063	1-1,3	30	106
180	0,05	1-1,3	30	91
200	0,053	1-1,3	30	74
250	0,04	1-1,3	30	61
300	0,04	1-1,3	30	44
325	0,035	1-1,3	30	43
400	0,03	1-1,3	30	60
500	0,025	1-1,3	30	25
20/110	0,37×0,25	1-1,3	30	110
24/110	0,35X0,25	1-1,3	30	85-90
50/250	0,14X0,11	1-1,3	30	50-55

Stainless Steel Rod

March 16, 2023 March 31, 2023

Wire

Kromtel stainless steel rods are used in cold and hot forming, construction sector, machines, machinings, production of medical instruments and equipments, selenoid valf production as raw materials. Kromtel can procure your steel rod needs which are requested quality, diameters and tolerances. Standard length of rods is 6 meter. It can be produced in different lengths according to requests. AISI 310S rods which have high resistance to corrosion always exist in our stock.

♦ Mechanical Properties ♦

Cold Drawn Centreless Ground	AISI 304	AISI 303	Increased Malleability	AISI 316	AISI 430	AISI 430F	Martensitic
Cold Drawn Centreless Ground	AISI 304	AISI 303	Increased Malleability	AISI 316	AISI 430	AISI 430F	AISI 410	AISI 420
Tensile Strength (Kg/mm2)	75-85	80-90	75-85	75-85	60-70	65-75	65	80
Yield Strength (Kg/mm2)	65-75	70-80	60-70	65-75	50-60	55-65	55	70
Elongation (%)5d	35-40	30-35	35-40	30-35	16-24	15-20	18	18
Reduction in Area	68-74	50-55	68-74	68-74	64-72	55-60	60	60
Hardness (HB)	220-235	225-240	220-235	210-230	190-210	200-220	215	240

Peeled Steel Rod / Centreless Ground	AISI 304	AISI 303	Increased Malleability	AISI 316
Tensile Strength (Kg/mm2)	60-65	62-67	60-65	60-65
Yield Strength (Kg/mm2)	32-37	30-35	30-35	–
Elongation (%)5d	55-60	55-60	55-60	55-60
Reduction in Area	68-74	55-60	68-74	68-74
Hardness (HB)	150-170	160-180	150-170	150-170

♦ Tolerances ♦

Diamater (mm)	SURFACE
Diamater (mm)	Peeled Steel Rod	Peeled Steel-Polished	Cold-Drawn	Ground – Polished
2,00-25,60	–	–	h9,h10,h11 ASTM-A-484	h8,h9 ASTM-A-484
>25.60-30.00	DIN1013 h10, h11	h10,h11 ASTM-A-484	–	h8,h9 ASTM-A-484
>30.00-80.20	DIN1013 h10, h11	h10,h11 ASTM-A-484	–	h8,h9 ASTM-A-484

Phosphor Bronze Spring Wires

March 16, 2023 March 24, 2023

Wire

♦ Phosphor Bronze Spring Wire ♦

Phosphor Bronze Spring Wire, which are copper alloyed wires, are used for machien ports, springs and electrical connection parts.

These wires are hard, have high surface tension, high conductivity rate and high resistance for corrosion.

♦ EQUIVALENT STANDARDS ♦

ALLOY	WERKSTOFF Nr	DIN EN 12166	AISI	SIZE RANGE (mm)
CuSn4	2.1016	CW450K	C51100	0.02 – 6.00
CuSn5	–	CW451K	–
CuSn6	2.1020	CW452K	C51900
CuSn8	2.1030	CW453K	C52100

Stainless Steel Welding Wires

March 16, 2023 March 30, 2023

Wire

Kromtel stainless steel welding wires and electrodes are mainly used in automotive industry, petroleum industry, electric power-plants, chemical industry, chemical industry and ship construction.

To choose the appropriate quality according to usage area and apply to material is very significant in stainless steel welding wires. Using the most appropriate welding quality and life alloy can be provided.

Stainless Steel TIG, MIG, underwater welding, gas metal arc welding wires and electrodes can be procured in all qualities, sizes, coils and quills as several type of packings and forms from Kromtel.

♦ Performance and Application Areas ♦
K308	It has strong junction and good resistance to crackage. It is suitable for K304 quality materials.
K308L	It has same performance with K308. It is suitable for K304L quality materials.
K308LSi	It provides more successful and easier welding opportunity than K308L. It is suitable for K304L materials.
K309	It has high level welding quality and success. It is used for K309 quality alloys and materials which are not same quality as Cr-Mo alloy steel, 13Cr-17Cr stainless steel alloys.
K309L	It shows same performance with K309. It should be preferred in low carbon stainless steels.
K309LSi	It is used in same materials with K3009L. It provides more successful and easier welding opportunity.
K310	Amount of Cr and Ni is high. It has excellent corrosion and thermal resistance. It is used in materials which are not same quality. This material has higher carbon than K309 and K309L.
K312	It is not suitable to use at high tempratures. It can be used in either materials with similar chemical composition or materials with dissimilar chemical composition.
K316	It provides strong junction and has high resistance to crackage. It is used in K316 quality stainless steel materials. Resistance to acid is high.
K316L	It has same performance with K316. Resistance to corrosion is higher. Resistance to corrosion is high in seawater and chemical environment.
K316LSi	Application areas are same with K316 and K316L. However, it provides more fluid and easier welding opportunity.
K347	The existance of element Nb in the composition increases intergranular corrosion resistance. It provides resistant welding opportunity against rupture at high tempratures.

Approximate Chemical Compositions
Kromtel Norm	C (Max)	Mn	P (Max)	S (Max)	Si	Cr	Ni	Mo (Max)	Cu (Max)	Other	AWS
K308	0.08	1.0-2.5	0.03	0.03	0.30-0.65	19.5-22.0	9.0-11.0	0.75	0.75	–	ER308
K308L	0.03	1.0-2.5	0.03	0.03	0.30-0.65	19.5-22.0	9.0-11.0	0.75	0.75	–	ER308L
K308 LSi	0.03	1.0-2.5	0.03	0.03	0.65-1.00	19.5-22.0	9.0-11.0	0.75	0.75	–	ER308 LSi
K309	0.12	1.0-2.5	0.03	0.03	0.30-0.65	23.0-25.0	12.0-14.0	0.75	0.75	–	ER309
K309L	0.03	1.0-2.5	0.03	0.03	0.30-0.65	23.0-25.0	12.0-14.0	0.75	0.75	–	ER309L
K310	0.08-0.15	1.0-2.5	0.03	0.03	0.30-0.65	25.0-28.0	20.0-22.5	0.75	0.75	–	ER310
K312	0.15	1.0-2.5	0.03	0.03	0.30-0.65	28.0-32.0	8.0-10.5	0.75	0.75	–	ER312
K316	0.08	1.0-2.5	0.03	0.03	0.30-0.65	18.0-20.0	11.0-14.0	2.0-3.0	2.0-3.0	–	ER316
K316L	0.03	1.0-2.5	0.03	0.03	0.30-0.65	18.0-20.0	11.0-14.0	2.0-3.0	2.0-3.0	–	ER316L
K316 LSi	0.03	1.0-2.5	0.03	0.03	0.65-1.00	18.0-20.0	11.0-14.0	2.0-3.0	2.0-3.0	–	ER316 LSi
K317	0.08	1.0-2.5	0.03	0.03	0.30-0.65	18.0-20.5	13.0-15.0	2.0-4.0	2.0-4.0	–	ER317
K317L	0.03	1.0-2.5	0.03	0.03	0.30-0.65	18.0-20.5	13.0-15.0	2.0-4.0	2.0-4.0	–	ER317L
K318	0.08	1.0-2.5	0.03	0.03	0.30-0.65	18.0-20.0	11.0-14.0	2.0-3.0	2.0-3.0	–	ER318
K347	0.08	1.0-2.5	0.03	0.03	0.30-0.65	19.0-21.5	9.0-11.0	0.75	0.75	Nb: 10XC”1.0	ER347
K410	0.12	0.6	0.03	0.03	Max. 0.50	11.5-13.5	0.6	0.75	0.75	Nb: 8XC”1.0	ER410

Packing Type
MIG			TIG
Packing Diameter (mm)	Pulley (kg)	Coil (kg)	Packing Diameter (mm)	Plastic Box (kg)	Cardboard Box (kg)
0.80 – 1.20	12.5	50 100	1.20 – 5.00	5	5 – 20

EDM Cut Wire

March 16, 2023 March 24, 2023

Wire

♦ EDM WIRE ♦

High speed cutting
Clear-cut
Waterproof Packaging
Bright and smooth surface
Accurate chemical composition
Low tolerance on diameter

Spool Dimensions (mm)

Spool Type	d1	d2	d3	d4	d5	t1	e1	L1	L2	Spool weight (gr)	Net Wire Weight (kg)
K 125	125	80	16	24	7	25	20	125	100	200	3,2
P-5R	160	90	20	–	–	11	–	114,5	90	366	5
K 160	160	100	22	34	13	28	32	160	128	350	6,4
K 200	200	125	22	34	13	32	32	200	160	600	16,2

Physical Properties

Wire Diameter(mm)	Tensile Strength (N/mm2)	Elongation %
0,20-0,30	450-550	20-30
0,20-0,30	850-1050	1-2,5

Chemical Composition

Allloy	Number		Cu (%)	Zn (%)	Al (%)	Fe (%)	Ni (%)	Pb (%)	Sn (%)	Mn (%)
CuZn37	CW508L	min. max.	62,00 64,00	Rest	– 0,05	– 0,10	– 0,30	– 0,10	– 0,10	–

Stainless Steel Rope

March 16, 2023 March 30, 2023

Wire

♦ Stainless Steel Rope ♦

Kromtel’s stainless steel ropes are generally used by various industries for a broad range of applications due to its high quality and construction variety.

K302 and K304 are the most common used ropes. K305 stainless steel ropes are anti-magnetic. K316 is used where high resistance against corrosion is needed.

Kromtel stainless steel ropes are mostly used by the automobile, the aviation and maritime industries, and by hobby, fishing, chemical and machinery industries more and more.

Due to its natural characteristics stainless steel is a reliable solution where elasticity and pulling, sliding and moving actions are required and used. The core of the rope is build up by two wires being twisted, and again by repeating this operation 7 to 19 times, the required rope is constructed. The more wires are used for twisting, the more the elasticity of the rope increases.

Rope parts and ropes; are named by (arms) x (wire per arm). For example: 1×19 means that 19 wires are wrapped around 1 arm. Those arms and ropes are suitable for suspension and tensile systems.

♦ 7 X 7 STAINLESS STEEL WIRE ROPE ♦

DIN 3055 / AISI 304-316

Rope Diameter (mm)	Unit Weight (kg/m)	Minimum Breaking Load (kgs)
1	0,004	60
1,5	0,009	130
2	0,016	230
3	0,035	515
4	0,063	915
5	0,098	1430
6	0,143	2300

Areas of usage:
Automotive systems, general purposes

♦ 1 X 19 STAINLESS STEEL WIRE ROPE ♦

DIN 3053 / AISI 304-316

Rope Diameter (mm)	Unit Weight (kg/m)	Minimum Breaking Load (kgs)
2,00	0,020	336
3,00	0,045	756
4,00	0,079	1340
5,00	0,124	2100
6,00	0,178	3030
8,00	0,317	5380
10,00	0,495	8400
12,00	0,713	12100

Areas of usage:
Marine, Architectural Purpose, Yacht Cable

♦ 7 X 19 STAINLESS STEEL WIRE ROPE ♦

DIN 3060 / AISI 304-316

Rope Diameter (mm)	Unit Weight (kg/m)	Minimum Breaking Load (kg)
2	0,017	212
3	0,034	477
4	0,061	849
5	0,095	1326
6	0,138	1960
8	0,245	3400
10	0,381	5310
12	0,548	7650

Areas of usage:
Marine, Architectural Purpose, Yacht Cable

♦ AISI 304 CHEMICAL COMPOSITION ♦

%C	%Si	%Mn	%P	%S	%Ni	%Cr	%Mo
0.08	1.00	2.00	0.040	0.030	8.00-10.50	18.00-20.00	–

♦ AISI 316 CHEMICAL COMPOSITION ♦

%C	%Si	%Mn	%P	%S	%Ni	%Cr	%Mo
0.08	1.00	2.00	0.045	0.030	10.00-14.00	16.00-18.00	–

Oil Tempered Spring Wires

March 16, 2023 March 30, 2023

Wire

♦ Oil Tempered CrSi and CrV Alloyed Spring Wires ♦

CrSi and CrV alloyed steel wires for springs especially used in automotive industry.

Other usage areas for oil tempered wires are;

Automobile suspension springs,
Motorcycle shock absorbers,
Automatic garage springs,
General industry machines,
Automobile brake springs,
Valve springs,
Mountain bike springs.

Monthly Archives: March 2023

Stainless Steel Strip

Phosphor Bronze Strip

Carbon Steel Strip

♦ Slitting and Cutting Line ♦

♦ Carbon Steel Area of Use ♦

Stainless Steel Wire Mesh

Stainless Steel Rod

♦ Mechanical Properties ♦

♦ Tolerances ♦

Phosphor Bronze Spring Wires

♦ Phosphor Bronze Spring Wire ♦

♦ EQUIVALENT STANDARDS ♦

Stainless Steel Welding Wires

♦ Performance and Application Areas ♦

EDM Cut Wire

♦ EDM WIRE ♦

Stainless Steel Rope

♦ Stainless Steel Rope ♦

♦ 7 X 7 STAINLESS STEEL WIRE ROPE ♦

♦ 1 X 19 STAINLESS STEEL WIRE ROPE ♦

♦ 7 X 19 STAINLESS STEEL WIRE ROPE ♦

♦ AISI 304 CHEMICAL COMPOSITION ♦

♦ AISI 316 CHEMICAL COMPOSITION ♦

Oil Tempered Spring Wires

♦ Oil Tempered CrSi and CrV Alloyed Spring Wires ♦

Archives

Categories

Cookies
