Stainless Steel Wire for Weaving and Braiding

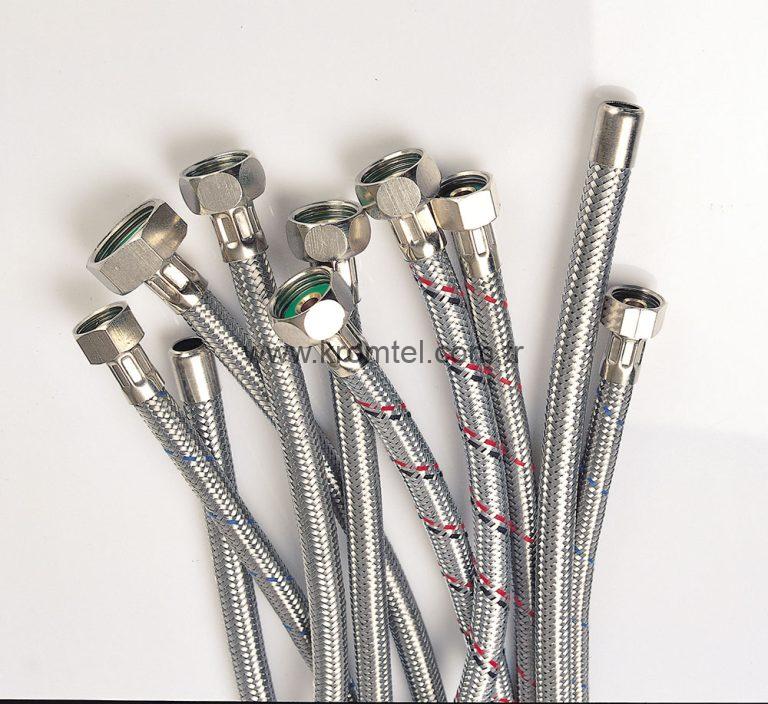

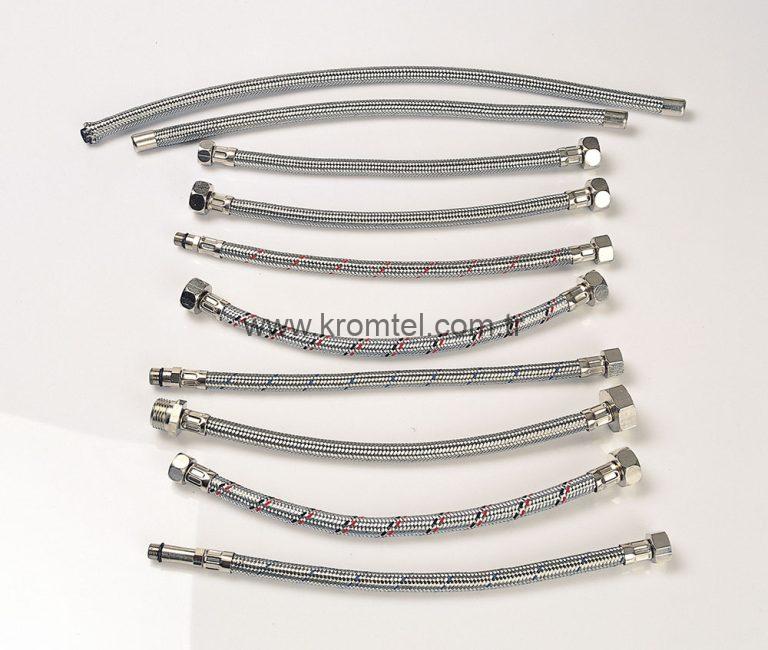

Stainless steel wires can be used for various weaving methods and applications due to their mechanical properties, their aesthetic surface and the fact that it can conserve its shiny view for a long time, and does not deform at high temperatures.

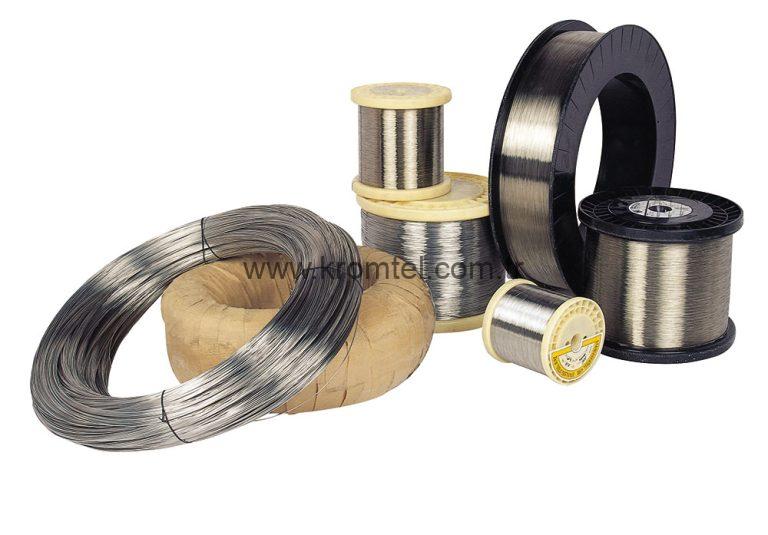

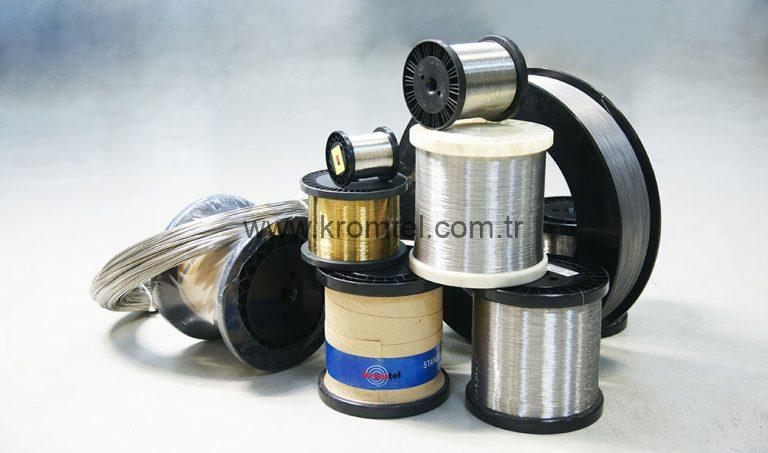

You can find bright annealed soft finished stainless steel wires for braiding at Kromtel. Being soft, helps the braiding process, it’s shiny and clean surface gives it more endurance against corrosion.
K304 and K316 quality wires are the most commonly used wires for braiding. Especially K314 quality wires are resistant to repeating heating and cooling conditions. So we suggest them to be used for conveyor belts.
As in industrial furnaces, the conveyor belts that will be used in high temperatures must be produced from K310 and K314 quality wires. K314 quality wires have the ability to work in high temperatures up to 1200°C.
Stainless steel wires are used in chemical industry, oil industry, synthetic fiber production, paper production and the food sector. Also we can see that due to their resistance for high temperature they are used in conveyor belts.
♦ APPROXIMATE CHEMICAL COMPOSITIONS ♦ | |||||||||||
Kromtel Normu | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | AISI | Werkstoff |
K304 | Max. 0.07 | 2 | 0.045 | 0.030 | 1 | 17,5-19,5 | 8-10,50 | – | – | 304 | 1,4301 |
K309 | Max. 0.20 | 2 | 0.045 | 0.015 | 1,5-2,5 | 19-21 | 11-13 | – | – | 309 | 1,4828 |
K310 | Max. 0.10 | 2 | 0.045 | 0.015 | 1,5 | 24-26 | 19-22 | – | – | 310 | 1,4845 |
K314 | Max. 0.20 | 2 | 0.045 | 0.015 | 1.50-2.50 | 24-26 | 19-22 | – | – | 314 | 1,4841 |
K316 | Max. 0.07 | 2 | 0.045 | 0.030 | 1 | 16,5-18,5 | 10-13 | 2.00-2.50 | – | 316 | 1,4401 |
K321 | Max. 0.08 | 2 | 0.045 | 0.030 | 1 | 17-19 | 9-12 | – | Max. 0,70 | 321 | 1,4541 |
K304L | Max. 0.03 | 2 | 0.045 | 0.030 | 1 | 17,5-19,5 | 8,0-10,5 | – | – | 304L | 1,4307 |
K316L | Max. 0.03 | 2 | 0.045 | 0.030 | 1 | 16,5-18,5 | 10-13 | 2,0-2,5 | – | 316L | 1,4404 |
K316Ti | Max. 0.08 | 2 | 0.045 | 0.030 | 1 | 16,5-18,5 | 10,5-13,5 | 2,0-2,5 | 5x%C-0,70 | 316Ti | 1,4571 |
K430 | Max. 0.08 | 1 | 0.040 | 0.030 | Max. 1 | 16-18 | – | – | – | 430 | 1,4016 |
♦ MECHANICAL PROPERTIES ♦ | ||||||
Diameter (mm) | K304-316 | K304L- 316L | K310S – 314 | |||
TensileStrength N/mm2 | Elongation % | TensileStrength N/mm2 | Elongation % | Tensile Strength N/mm2 | Elongation % | |
0,040-0,056 | 880 Max | 20Min | 880 Max | 20Min | 880 Max | 20Min |
0,057-0,09 | 880 Max | 25Min | 880 Max | 25Min | 880 Max | 25Min |
0,091-0,22 | 830 Max | 30Min | 830 Max | 30Min | 830 Max | 30Min |
0,221-0,37 | 830 Max | 35Min | 780 Max | 35Min | 780 Max | 35Min |
0,371-0,50 | 810 Max | 40Min | 760 Max | 40Min | 760 Max | 40Min |
0,501-0,60 | 780 Max | 40Min | 740 Max | 40Min | 740 Max | 40Min |
0,61-1,60 | 740 Max | 40Min | 690 Max | 40Min | 740 Max | 40Min |
1,61-7,00 | 690 Max | 45Min | 640 Max | 45Min | 690 Max | 45Min |
♦ TOLERANCE AND OVALITY ♦ | ||
DIAMETER | TOLERANCE | OVALITY |
0,040-0,056 | 0,002 | 0,002 max |
0,057-0,090 | 0,003 | 0,003 max |
0,091-0,370 | 0,005-0,004 | 0,004 max |
0,371-0,600 | 0,006-0,005 | 0,005 max |
0,61-1,40 | 0,01 | 0,010 max |
1,41-1,60 | 0,02 | 0,020 max |
1,61-2,60 | 0,03 | 0,030 max |
2,61-5,00 | 0,04 | 0,040 max |
5,10-7,00 | 0,05 | 0,050 max |
